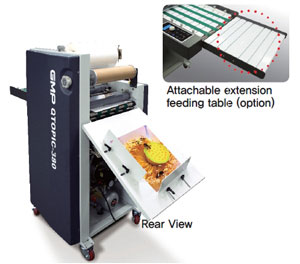

POD Semi Automatic Roll Laminators
QTOPIC-380
QTOPIC-380
QTOPIC-380
Perfect & Easy Operation for Digital Printing On Demand Solution
SPECIAL FEATURES
- Using household power supply (220~240V)
- Environmentally-friendly ThermalamiŽ system
- Perfect lamination for wide range of Lamination
- POLYNEX(BOPP base) film
- NYLONEX(NYLON base) film
- PERFEX(PET base) film - Space-effective compact design for office, copy shop & photo shop
- Automatic paper feeding gap control system and automatic burst cutting system
- Film tension control device and decurling device are equipped
- Capacitive touch screen
- Sleeking solution & MICRONEX lamination with re-winder unit
- Gloss, Matt, Hologram, Metallic sleeking film
- MICRONEX(overlay coating) laminating film - Air compressor included

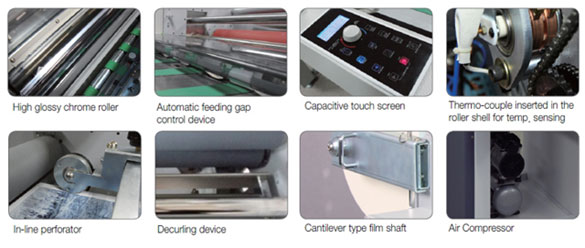

Features:
- Exchangeable/Commonized PCB
- Automatic feeding paper gap control
- Air compressor (with light weight & lower noise) is placed inside the body
- Strengthened laminating pressure for more stepped-up bonding power effecting perfect quality of output
- Ergonomic touch screen for enhancing operator-centric convenient control & quality productivity
- Cantilever type film shaft for easy film loading
APPLICATION
- Poster, pop sign, menu
- Book cover & jacket
- Photo graph & album
- Name card
- Gift certificate
- Label (Micronex Lamination)
- Greeting Cards / Year book
Basic patterns of embossing roller (option)
Specification
| Model | QTOPIC-380 |
|---|---|
| Dimension (W*L*H, mm) | 720*1700*1350mm |
| Laminating speed | 1.5m/min ~ 10m/min |
| Paper size (W*L, mm) | Max : 380*500mm (option: 1200mm) Min : 180*210mm |
| Laminating films | Single Side: POLYNEX (20~43mic), PERFEX(25mic), NYLONEX(27~44mic) MICRONEX (6~10mic) : Gloss, Matt, Hologram |
| Sleeking | Gloss, Matt, Hologram, Metallic |
| Substrate thickness | 120 ~ 350g/m² |
| Front roller diameter | Top: high glossy chrome Ř100 Bottom: silicon Ř80 |
| Rear roller diameter | silicon Ř55 |
| Power requirement | AC 220~240V, 50/60Hz, 12A |
| Power consumption | 2.8kw |
| Warm-up time | 5 min. |
| Heating system | Infrared Heater |
| Laminating temp. | Max.150 |
| Temp. control | Capacitive Touch Screen |
| Speed control | Capacitive Touch Screen |
| Display system | LCD Panel |
| Roller pressure | Pneumatic Cylinder |
| Film core size | 77mm (3) / Dual - 58mm, 50mm |
| Air Compressor | 1 HP, 89L/min |
| Temp. Sensing method | Thermo-couple inserted in the roller shell |
| Net Weight | 187 kg |
